In the architecture, engineering, and construction (AEC) industry, a construction monitoring report is much more than a procedural document—it's the cornerstone of effective project management. Regular construction progress monitoring, through detailed reports, helps stakeholders remain informed about the progress of work, utilization of resources, adherence to schedule, and management of costs. However, generating these reports using traditional methods can be cumbersome and time-consuming.
Construction progress reports have undergone a significant transformation in recent years, thanks to advancements in Building Information Modeling (BIM) and 3D Spatial Digital Twins. These cutting-edge technologies have revolutionized the way progress is tracked, enabling near real-time updates and enhancing collaboration among engineers, contractors, and owners.
In this blog post, we will explore the evolution of construction progress reports and highlight how BIM and 3D Spatial Digital Twins have paved the way for continuous, accurate progress tracking.
Why Are Construction Progress Reports Important?
Construction progress reports are crucial as they provide a documented record of completed tasks, ensuring projects stay on schedule. They allow stakeholders to monitor costs, which ensures financial adherence, and offer a mechanism for early identification of potential problems or delays, which promotes timely mitigation.
Furthermore, these reports serve as a communication bridge among all involved parties, keeping everyone informed about the project's status, and they offer essential data that aids in informed decision-making regarding resources, timelines, and potential changes.
What Strategies Can AEC Professionals Leverage To Improve Their Documentation Procedures?
AEC professionals can enhance their documentation procedures by adopting digital tools like BIM and 3D Spatial Digital Twins, standardizing templates and protocols, and offering regular training on best practices.
Utilizing cloud storage and leveraging collaborative platforms facilitates real-time teamwork, while automating workflows to minimize manual errors. Periodic audits and a feedback mechanism allow for continuous refinement of documentation processes, ensuring optimal efficiency and clarity in projects.
Challenges with Traditional Construction Monitoring Reports
In the past, construction progress reports relied on manual data collection, which often led to delays and inaccuracies. Project managers had to compile information from various sources —such as site inspections and contractor reports — manually analyze the data, and then create reports at predetermined intervals.
This approach had limitations in terms of real-time visibility, as updates were typically periodic and did not provide an up-to-date understanding of project status.
Traditional progress reporting often leads to the following issues:
- Time-Consuming Reporting. Preparing progress reports can be labor-intensive. Collecting, compiling, and presenting the data can require significant time, especially if done manually.
- Static Information. Traditional reports typically capture the status of a project at a specific point in time. This means the information can quickly become outdated, especially in fast-paced construction environments.
- Accuracy. Human error can result in inaccuracies in the data, misinterpretation of the information, or omission of crucial details.
- Limited Visuals. Lack of visual representations of the project status can make it more challenging for stakeholders to visualize progress or understand complex issues.
- Subjectivity. Reports might be influenced by the individual preparing them. Bias, either intentional or unintentional, can result in a skewed or overly optimistic view of progress.
- Communication Barriers. Issues with report clarity for stakeholders from different backgrounds (e.g., investors or non-construction professionals) may present difficulties in understanding.
- Lack of Context. Traditional reports might not provide enough context for the information presented. For instance, if a project is behind schedule, it's useful to know why, rather than just the fact that it is delayed.
- Storage and Retrieval. Paper-based reports require physical storage space, and retrieving old reports can be cumbersome. Electronic versions, if not stored and organized effectively, can also lead to retrieval challenges.
- Limited Accessibility. Traditional reports might be accessible only to a few stakeholders, missing out on keeping all relevant parties informed.
- Static Feedback Loop. Traditional reporting often does not have an interactive or dynamic mechanism for feedback. Stakeholders might have to wait for the next meeting or report to ask questions or provide inputs.
- Integration Issues. If data for the report is gathered from various sources or software systems, there might be challenges in integrating this data into a cohesive report.
How New Technologies Enhance Construction Progress Monitoring
The use of BIM and the integration of 3D Spatial Digital Twins with real-time tracking is changing how construction progress is measured and shared.
Let’s explore how these technologies provide a dynamic and accurate visual representation of the construction site, allowing stakeholders to track progress, detect discrepancies between planned and actual construction, and make data-driven decisions instantly.
Advancements in BIM
The emergence of BIM has revolutionized the construction industry, transforming the way projects are designed, planned, and executed. BIM software allows for the creation of virtual 3D models that encompass the entire building lifecycle. These models contain detailed information about the project's components, materials, and schedules, enabling stakeholders to visualize the construction process before it even begins.
BIM has revolutionized the construction industry in numerous ways, and one of the significant areas of impact is construction progress reporting. The integration of BIM into construction workflows has facilitated more efficient, accurate, and comprehensive progress reporting. Here's how:
- Real-Time Data and Visualization. BIM offers real-time 3D visualization of the project, allowing stakeholders to visually see progress. This means that any discrepancies between the actual construction and the model can be identified immediately.
- Integration with Field Technologies. BIM can integrate with various construction technologies, such as laser scanning, drones, and augmented reality. These technologies can capture site conditions and automatically compare them to the BIM model to track progress.
- Automatic Generation of Reports. With the use of BIM software, progress metrics can be generated automatically, reducing the time and potential for human errors associated with manual reporting.
- Enhanced Communication. BIM offers a centralized platform where all stakeholders can access the model and its associated data. This means everyone is looking at the same information, reducing the potential for miscommunication.
- Clash Detection. BIM can identify where different building systems (like electrical, plumbing, and HVAC) might conflict with one another. By catching these "clashes" early in the process, costly and time-consuming changes during construction can be reduced.
- Cost Reporting. BIM allows for more accurate cost estimation and tracking. As materials are added or changed in the model, the associated costs can be updated in real-time, providing an up-to-date financial status.
- Schedule Integration. BIM can be integrated with scheduling tools (like those in 4D BIM), allowing for visual representation of construction sequences and timelines. This can be a powerful tool in progress reporting, showing what parts of a project should be completed at any given time.
- Interactive Feedback. Stakeholders can provide feedback directly into the BIM system, creating a more dynamic feedback loop than traditional reporting.
- Asset and Facility Management Integration. Beyond just construction, BIM also has implications for the operation and maintenance phase of a building's life cycle. Progress reporting can include aspects related to future facility management, ensuring that construction aligns with long-term operational goals.
- Mobile Access and Cloud Integration. Modern BIM systems often leverage cloud technologies, meaning that stakeholders can access progress reports from anywhere with an internet connection. This ensures that decision-makers are always informed, even if they can't be physically present on-site.
- Collaboration. BIM facilitates collaborative work, with multiple disciplines editing and updating the model. This collaboration ensures that progress reporting is comprehensive, incorporating insights from all involved parties.
The advancement of BIM has contributed significantly to improving construction progress reporting. Its ability to centralize data, integrate with other technologies, and provide real-time visualizations has made progress reporting more accurate, efficient, and actionable. The increased transparency and accessibility offered by BIM also foster greater trust and collaboration among project stakeholders.
Integration of 3D Spatial Digital Twins
The integration of 3D Spatial Digital Twins with BIM has taken progress tracking to new heights. 3D Spatial Digital Twins are dynamic, digital replicas of physical assets that capture every detail of a construction site. This is achieved through technologies like 360 video capture, LiDAR scanning, and photogrammetry. These technologies enable the creation of highly accurate and immersive 3D models that represent the current state of the project.
A 3D Spatial Digital Twin tool like CupixWorks is designed to provide a digital representation of a physical environment, capturing both its spatial structure and its real-time conditions. Implementing such a tool offers numerous benefits to construction progress tracking:
- Visual Documentation. CupixWorks allows for easy and consistent capture of site conditions through a simple 360-degree video capture. These panoramic images are mapped to the 3D space, providing visual documentation of construction progress. Stakeholders can "walk" through the site virtually at any point in time, comparing actual conditions to planned outcomes.
- Integration with BIM. From the 360 video capture, CupixWorks also generates a 3D dollhouse model of the as-built conditions on the job site, which are then integrated with the BIM model. This means you can overlay the digital twin (real-world capture) with the BIM model (planned design) to visually compare and spot discrepancies or deviations from the plan.
- Collaboration. CupixWorks is a cloud-based system which provides access in any web browser. Different stakeholders, from architects to the investors, can access the digital twin, annotate areas of interest, raise questions, or provide feedback. This collaborative environment ensures that all parties are informed and aligned.
- Risk Management and Safety. By visually capturing the site regularly, safety issues or potential risks can be identified more readily. For instance, if there's equipment placed in potentially hazardous zones or if safety protocols aren't being followed, these risks can be flagged for immediate action.
- Quality Control. With the ability to overlay the Cupix 3D digital twin with the BIM model, quality assurance becomes more efficient. Any deviations from the planned model can be quickly identified, ensuring adherence to design specifications and standards.
- Documentation and Compliance. For projects that require regulatory compliance or certifications, having a detailed visual record of construction phases can simplify the verification process. It offers a more transparent and verifiable record of what was done and when.
- Remote Access. A 3D digital twin allows stakeholders to virtually visit and inspect the site without being physically present. This capability ensures continuity of work and decision-making regardless of external constraints.

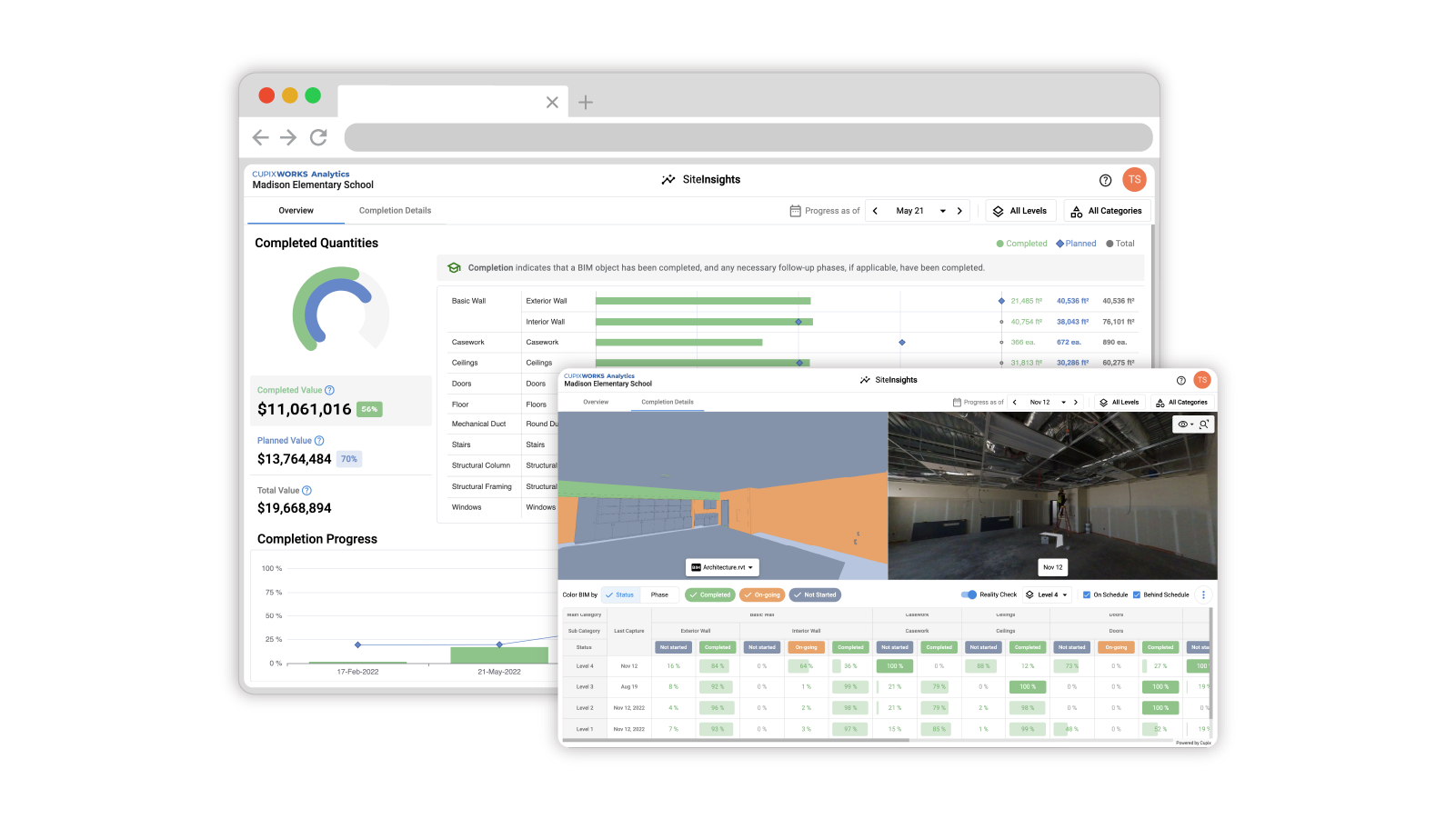

- Integration with Project Management Systems. Beyond BIM, the Cupix 3D digital twin tool SiteInsights can be integrated with enterprise project management. This integrated approach provides a more holistic view of the project, combining spatial-, temporal-, and contextual-based progress reporting.
- Training and Onboarding. For new team members or subcontractors joining the project, a digital twin provides a comprehensive view of the site's current status, facilitating faster orientation and understanding.
In essence, the Cupix 3D Spatial Digital Twin significantly enhances the granularity, accuracy, and timeliness of construction progress tracking — especially when compared to traditional 360 photo documentation techniques. It leverages visual data, integration capabilities, and cloud technology to foster collaboration, improve decision-making, and streamline project management.
Real-Time Progress Tracking
By integrating a Cupix 3D Spatial Digital Twin with BIM, project teams can track progress in near real-time. The digital twin, updated regularly through 360 video capture and other data sources, provides a visual representation of the actual construction site. It can be overlaid onto the BIM model, allowing stakeholders to compare planned versus actual progress. This integration enables continuous monitoring of tasks, identification of deviations, and prompt decision-making to address any issues that may arise.
Advantages of tracking progress with a 3D Spatial Digital Twin include:
- Real-time Progress Monitoring. By frequently updating the digital twin (e.g., daily or weekly), stakeholders can have real-time insight into the progress. This reduces the need for frequent on-site visits, which can be time-consuming and costly.
- Historical Timeline. With regular updates to the digital twin, you can essentially have a time-lapsed view of the construction site. This historical perspective can be crucial for understanding the sequence of events or identifying when a particular issue first emerged.
- Improved Communication. Visual representations often communicate more effectively than textual descriptions. Using a digital twin for progress meetings can lead to better understanding and faster decision-making among stakeholders, especially when involving those who might not have a technical background.
- Cost Management. Delays or changes often have cost implications. With a more real-time view of progress and the ability to compare it to planned milestones, budget overruns or areas of inefficiency can be spotted and addressed more proactively.
The use of BIM and 3D Spatial Digital Twins in construction progress tracking fosters enhanced collaboration among engineers, contractors, and owners. Stakeholders can access the digital twin remotely, visualize the project's current status, and identify potential clashes or delays. This transparency facilitates more effective communication, enables timely interventions, and ensures that the project stays on track. Additionally, owners can gain a deeper understanding of the progress, make informed decisions, and actively participate in the project management process.
The evolution of construction progress reports, driven by advancements in BIM and 3D Spatial Digital Twins, has transformed the way projects are monitored and managed. The integration of these technologies allows for near real-time progress tracking, enabling stakeholders to make data-driven decisions, identify issues proactively, and collaborate effectively.
As the construction industry continues to embrace these innovations, the future of progress tracking holds even more promise, with increased automation, predictive analytics, and seamless integration across project phases. By leveraging BIM and 3D Spatial Digital Twins, construction projects can achieve higher levels of efficiency, productivity, and overall success.
Interested in learning more about Cupix’s reporting capabilities? In our recent case study, we explore how Cupix helps document everything from existing conditions to the final certificate of occupancy. Read more here.
